Comparing Two Established Approaches to Fresh Water Production on Board
Production of fresh water on board is a fundamental requirement for any vessel. While often taken for granted, reliable access to safe drinking water plays a direct role in crew wellbeing, operational continuity, and overall vessel efficiency.
For decades, two fresh water production technologies have been used at sea: evaporation and reverse osmosis (RO). Both are proven, both are well understood, and both continue to be installed on vessels today. The question is how each technology performs under current operating conditions and what that means in practice when you own and or operate a vessel.
This article compares evaporator and reverse osmosis water generators based on their operating principles, energy use, installation requirements, maintenance characteristics and suitability for today’s maritime operations.
Two Technologies with Different Operating Logic
Evaporators and RO systems achieve the same objective: converting seawater into fresh water. But, they do so in fundamentally different ways.
Evaporators are heat‑driven systems. They use thermal energy, typically recovered from the main engine cooling circuit or a thermal oil system, to evaporate seawater under vacuum conditions. The vapor is then condensed into fresh water. This approach has long been effective on vessels with stable engine loads and sufficient waste heat available.
Reverse osmosis systems are pressure‑driven and electrically powered. Seawater is forced through semi‑permeable membranes that separate fresh water from salts and other dissolved substances. No heat input is required, and production depends primarily on electrical power and system pressure.
These different operating principles introduce different dependencies, and it is these dependencies that increasingly influence technology selection.
Energy Use and System Demand
Both evaporator and RO systems require seawater intake pumps and auxiliary equipment. Beyond that, energy demand differs significantly.
Evaporator systems require large volumes of seawater to maintain vacuum conditions and rely on a continuous supply of heat. While this heat is often recovered from the main engine, overall system performance remains closely tied to engine operation and load. Changes in seawater temperature or engine output can directly affect production capacity.
RO systems require electrical power to drive high‑pressure pumps. Over the past decades, efficiency improvements in membrane technology and pump design have significantly reduced the total energy consumption of RO systems. When considering the full system, modern RO water generators typically require less overall energy than comparable evaporator installations.
From an operational perspective, this means RO systems place fewer constraints on how and when water can be produced.
Fresh Water Production Across Operating Conditions
Traditional ship operating profiles, characterized by long sailing periods at steady engine load, align well with evaporator systems. Under these conditions, sufficient waste heat is available and fresh water production follows propulsion activity.
However, operating profiles have evolved. Slow steaming, extended anchorage, frequent port stays, and variable engine loads are now common across many vessel types. In such scenarios, evaporator output can be reduced or interrupted due to limited heat availability.
RO systems are largely unaffected by these changes. Because production does not depend on engine heat, RO units can continue producing fresh water:
- during low‑load operation
- at anchor or alongside
- independently of propulsion schedules
This operational independence does not invalidate evaporators, but it does provide RO systems with greater flexibility across a broader range of conditions.
Installation, Footprint and Retrofitting
Installation requirements differ noticeably between the two technologies.
Evaporator systems require not only seawater, brine, and fresh water connections, but also integration with hot water or thermal circuits from the engine. This increases piping complexity, installation time, and overall system weight.

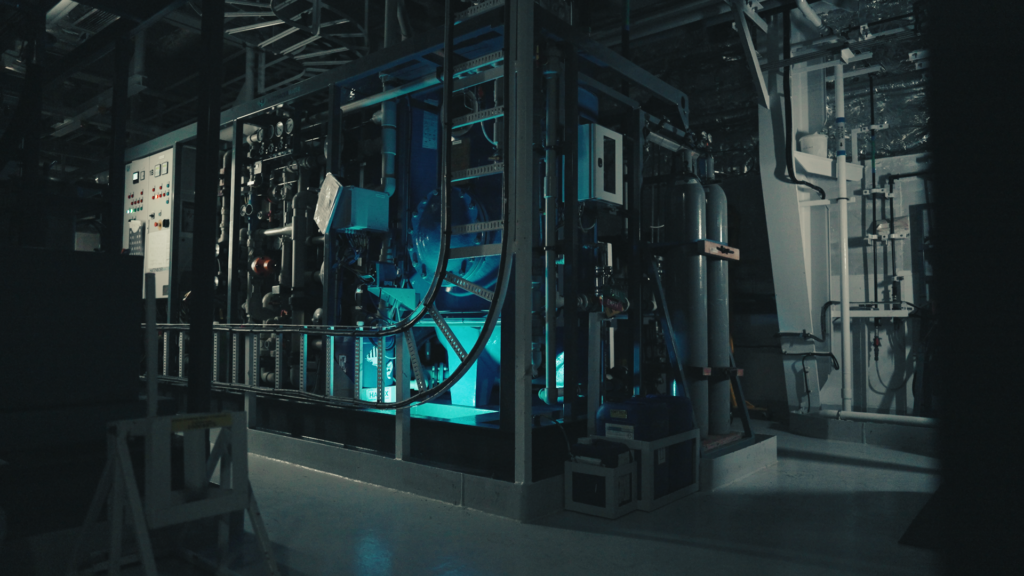

RO systems are typically delivered as skid‑mounted, self‑contained units, incorporating filtration, dosing, and cleaning equipment within a compact footprint. No hot water piping is required. As a result:
- installation and commissioning times are generally shorter
- retrofitting is less invasive
- system weight is lower for comparable capacities
RO systems can also be configured to fit tight engine rooms or installed in dividable skids, offering additional flexibility during retrofit projects.
Maintenance and Operational Impact
Maintenance is another area where practical differences become apparent.
Evaporator maintenance often involves manual cleaning of heat exchanger plates, resulting in longer downtime and higher crew involvement. These procedures are labor-intensive and sensitive to fouling and scaling, particularly under varying operating conditions.
RO systems rely primarily on automated Clean‑In‑Place (CIP) procedures. Cleaning cycles are predictable, controlled, and require limited manual intervention. While RO systems use consumables such as membranes, filters, and chemicals, routine maintenance generally demands fewer man‑hours and shorter downtime periods.
From an operational standpoint, this translates into more predictable maintenance planning and consistent water availability.
Filtration and Water Quality Considerations
RO systems require more extensive pre‑filtration to protect membranes from fouling. This is typically achieved through integrated multi‑media filtration and cartridge filters, often supplied as part of the RO. Chemical dosing for scale control is common to both technologies.
Evaporators rely less on pre‑filtration but remain sensitive to feed water quality and operating conditions. In practice, RO systems tend to deliver more consistent water quality, as production is less influenced by fluctuations in engine load or thermal availability.
Capital and Operational Costs
When comparing capital expenditure, evaporator and RO systems are broadly comparable across similar production capacities. Differences in operational expenditure are more nuanced.
Evaporators generally require fewer consumables but incur higher labor costs due to maintenance complexity. RO systems require consumables and periodic membrane replacement, but benefit from reduced downtime, automated maintenance, and operational flexibility.
Over the lifecycle of the system, these factors must be weighed against the vessel’s operating profile and crew capacity.
Making an Informed Choice
Both evaporator and reverse osmosis systems remain valid solutions for fresh water production on board. Evaporators perform well where stable engine load and sufficient waste heat are consistently available.
At the same time, RO systems align well with modern operating realities: diesel electric propulsion, variable engine loads, increased port time, energy efficiency targets, and the need for operational flexibility. Their lower overall energy demand, compact design, and independence from engine heat make them suitable for a wide range of vessel types and operating profiles.
For vessels operating with ageing evaporator systems, replacement decisions increasingly point towards RO. Replacing an evaporator like‑for‑like often means renewed integration with engine cooling circuits, added piping, and longer installation time. Compact RO units such as Tethys offer a simpler alternative: skid‑mounted, self‑contained, and independent of engine heat. As a result, they are well suited as evaporator replacements, enabling faster retrofits, reduced installation complexity, and consistent fresh water production regardless of engine load or operating profile.
Conclusion: Understanding the Difference
The choice between evaporator and reverse osmosis technology is a question of how each system fits the way vessels operate today.
By understanding the practical differences in operating principles, dependencies, and maintenance requirements, shipowners and operators can select the solution that best supports reliable, efficient, and safe fresh water production on board with reverse osmosis increasingly proving to be the more adaptable option under modern conditions.
